Machines Comacchio

Comacchio, c’est plus de 30 ans d’expérience et une place de choix sur le marché mondial des petites et moyennes machines de forage.

Au cours de ces années, des centaines de machines et d’installations ont vu le jour, opérant dans divers domaines tels que la géotechnique, les fondations, les tunnels, les puits d’eau, l’exploration minière…

GEO 305

The GEO 305 is a compact sized hydraulic drilling rig mounted on rubber tracks and covering the full spectrum of geotechnical activities, such as soil investigations carried out with destructive and non-destructive techniques, sample

collection, installation of piezometers, inclinometers and other geotechnical instrumentation.

Besides geotechnical investigation in the strict sense, this drilling rig can be used for environmental studies and monitoring activities.

Options :

  • Year of manufacture : 2009
  • Weight : 3 550 kg
  • Mast in 2 elements
  • Max pull up 3 500 daN , max pull down 3 500 daN
  • Casing extractor 8 000 daN
  • Remote control for tracks
  • Rod holder + rod breaker with max inner diameter 220 mm
  • Motor Deutz 55 kW
  • Winch 500 kg
  • Head slide off the way
  • Water/mud pump high flow
  • Rubber track
  • LED lamps

Rotary head Comacchio CT 38 :

Torque : 306 / 720 daNm

Rotation speed : 90 / 45 RPM

Output thread : 2 3/8 IF box

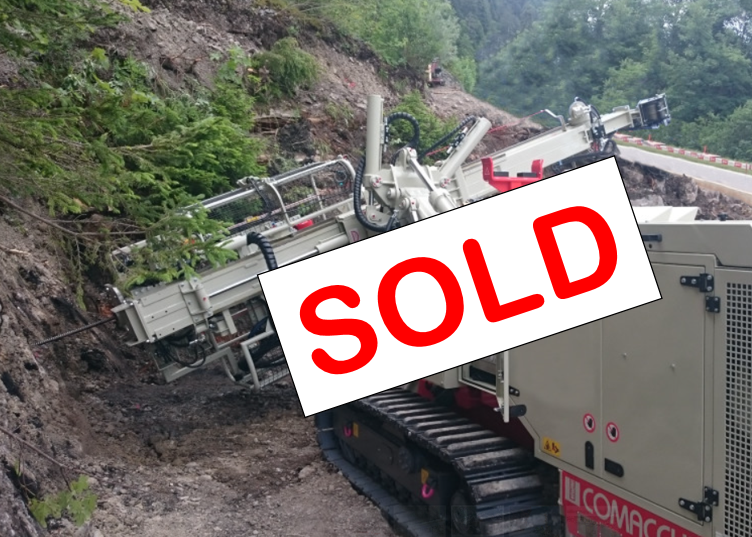

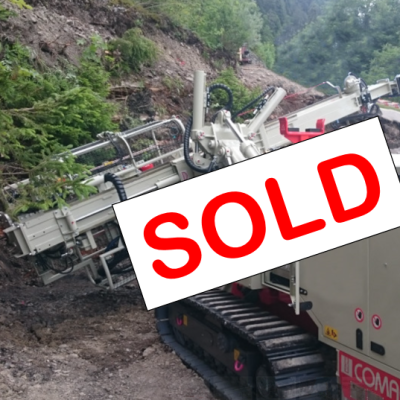

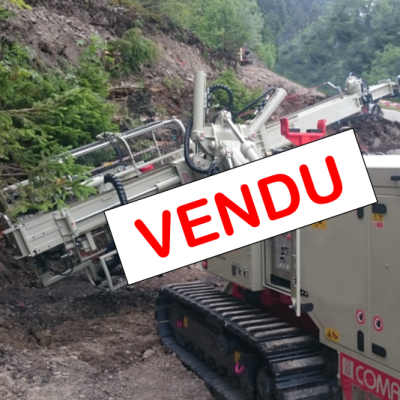

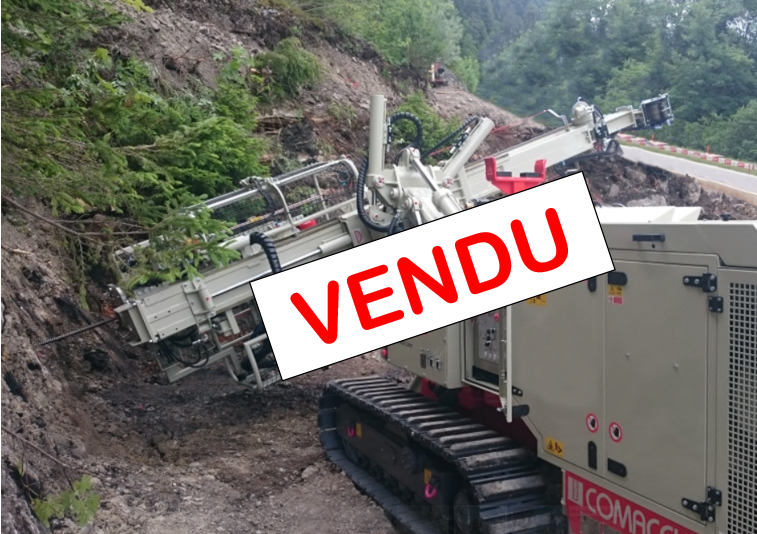

MC 12

The MC 12 is a versatile and powerful hydraulic drilling rig designed for civil engineering works such as micropiles, anchors, jet grouting and ground improvement in general.

The rig’s patented mast articulation ability, compact size and variety of mast positions and inclinations allow for operation even in confined spaces.

Options :

  • Year of manufacture : 2017
  • Weight : 13 100 kg
  • Mast in 2 elements + crown block
  • Max pull up 6000 daN , max pull down 6000 daN
  • Casing extractor 8 000 daN
  • Radio control for drilling + tracks
  • Rod holder + rod breaker with max inner diameter 320 mm
  • Motor Deutz 115 kW
  • Winch 2000 kg
  • Head slide off the way
  • Water/mud pump 200 l/min
  • High pressure cleaner + pump
  • Rubber shoe for steel track
  • LED lamps
  • D.T.H. hammer Lubricator
  • Preequiped for jetgrouting
  • Preequiped for drilling parameter recorder

Equipped with the Eurodrill RH 15 X drifter ( rotary head + percussion ) :

Tableau

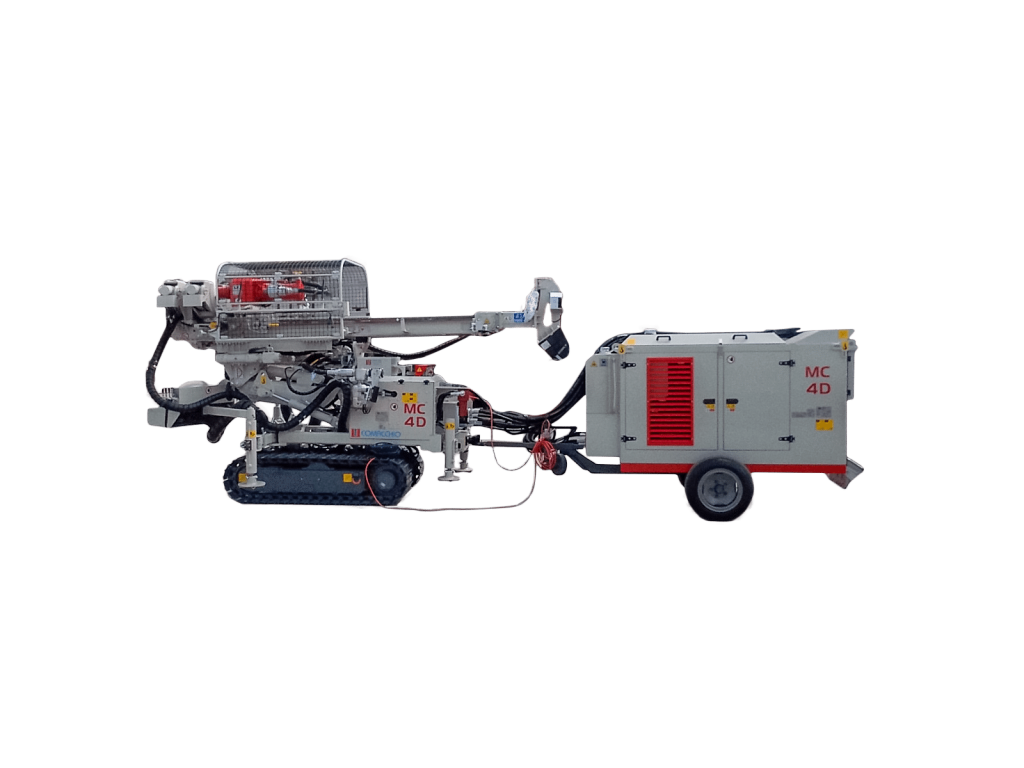

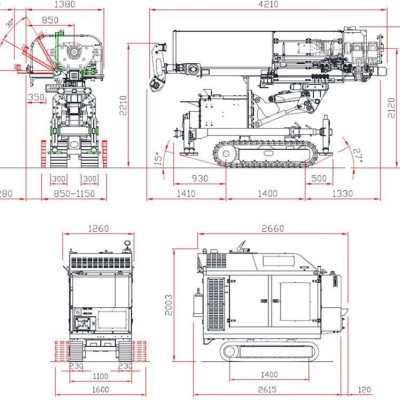

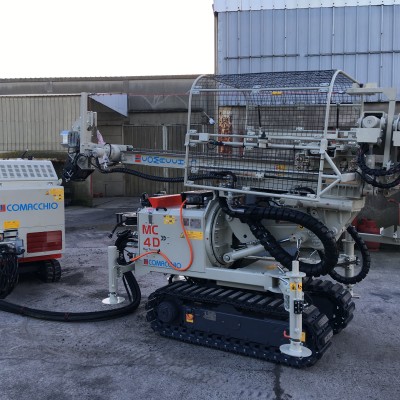

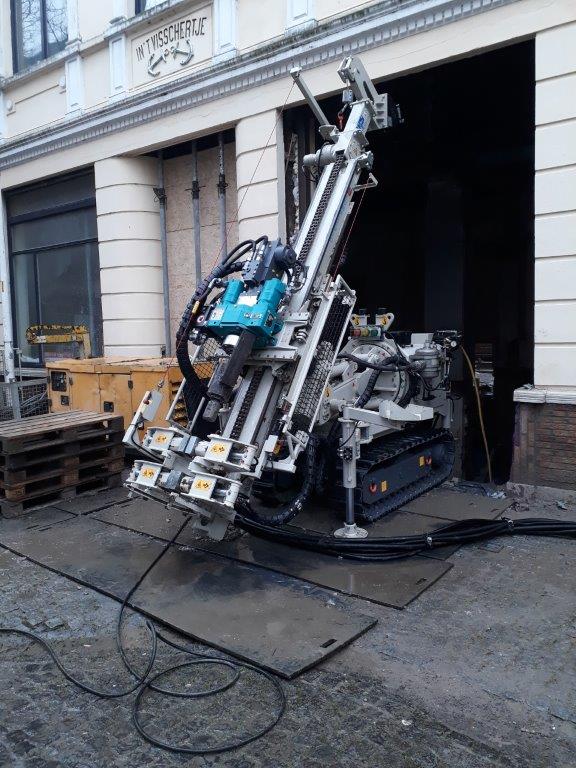

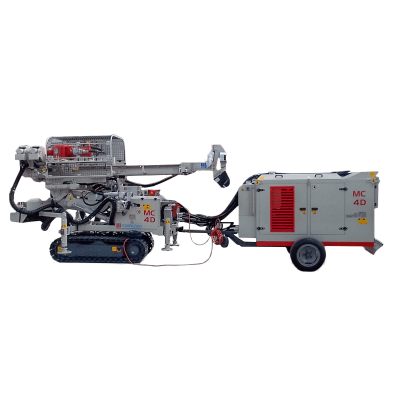

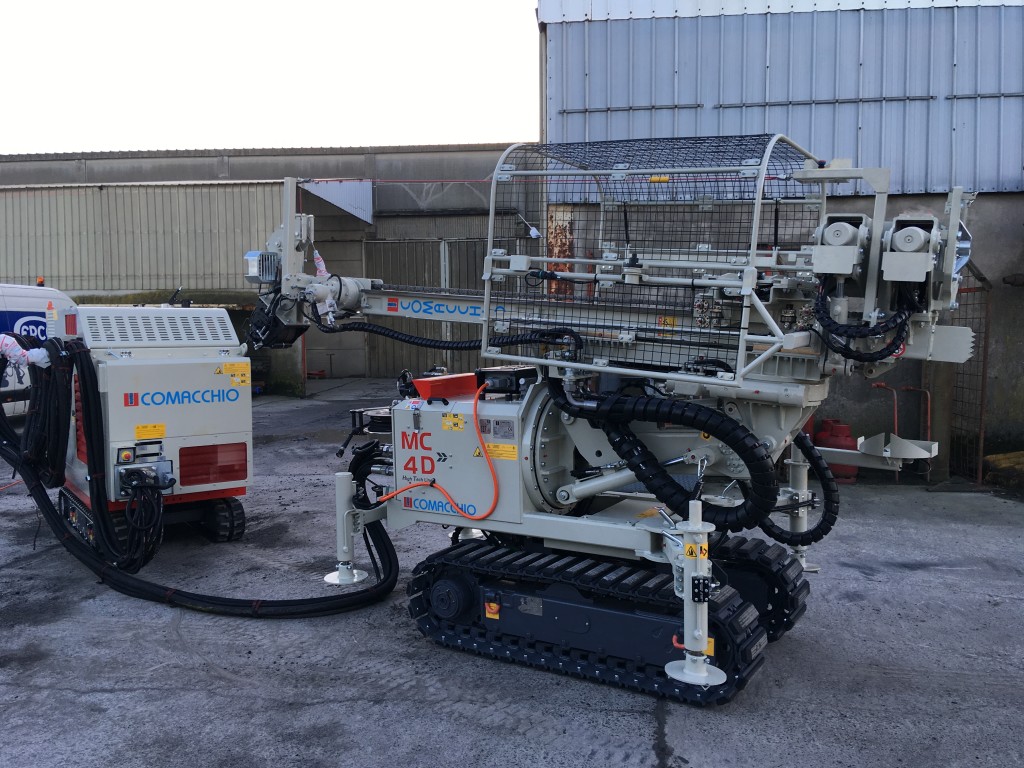

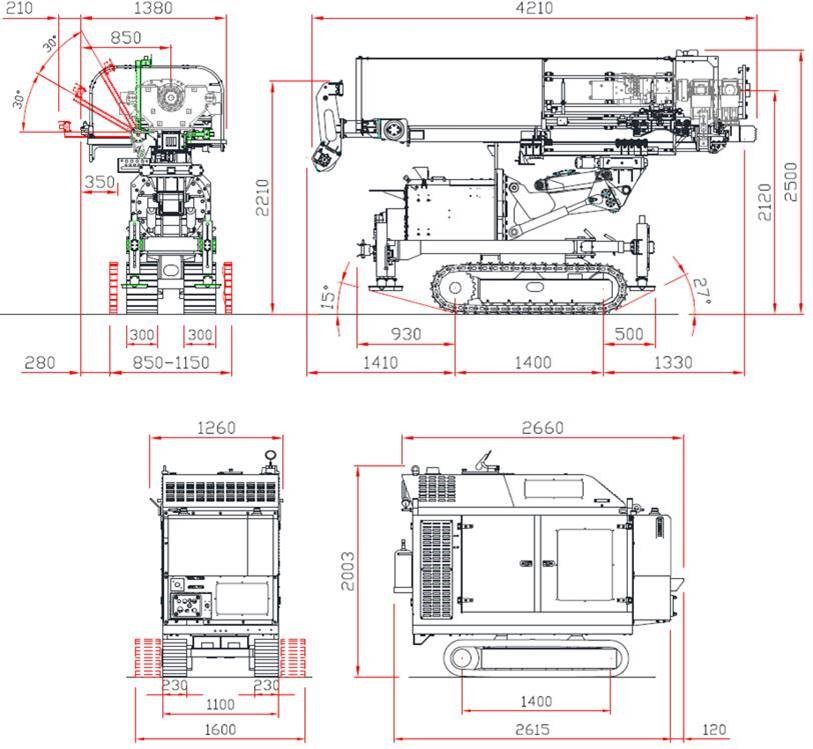

MC 4D

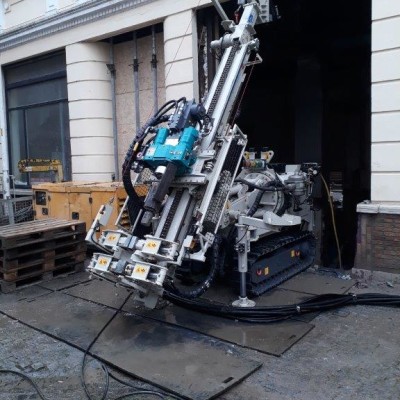

The MC 4D is a hydraulic drilling rig with separate power pack, specifically designed for the execution of ground engineering works in confined or low overhead spaces and difficult access jobsites, inside buildings, basements and small tunnels.

This is possible due to the rig’s wide range of allowable movements. This machine is equipped with a soundproof diesel power pack.

Options :

  • Year of manufacture : 2017
  • Weight : drilling unit : 5 000 kg , powerpack : 2 750 kg
  • Max pull up/down 3500 daN

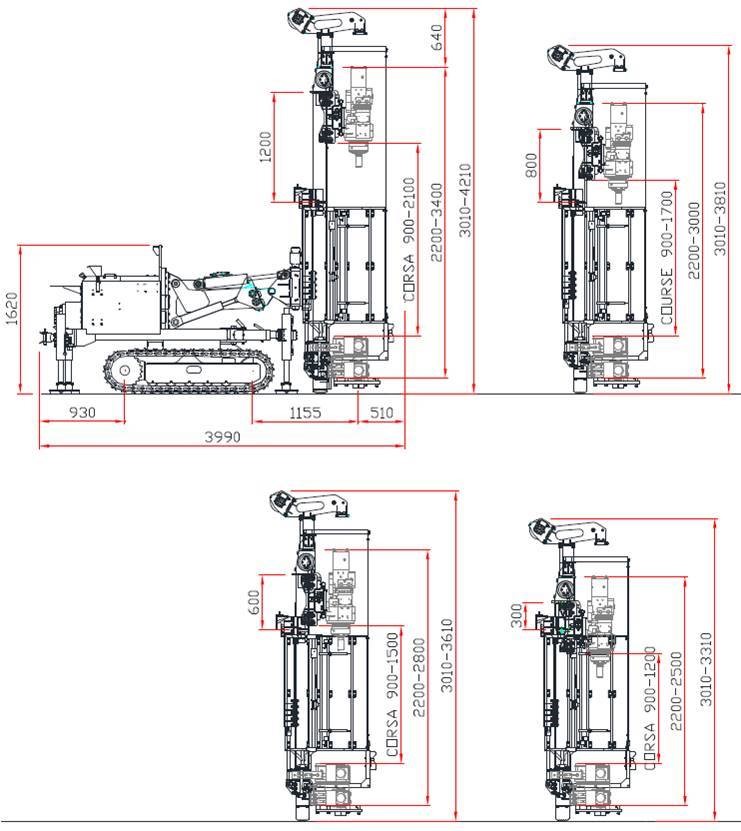

  • Mast extension length : 300 / 600 / 800 / 1200 mm
  • Radio control for drilling + tracks
  • Drilling unit + powerpack on steel crawler including variable width and rubber shoe
  • Hydraulic hoses between powerpack and drilling unit : 20 meters
  • Rod holder + rod breaker with max inner diameter 220 mm
  • Motor Deutz 100 kW
  • Winch 1000 kg
  • Head slide off the way
  • High pressure pump + cleaner gun
  • D.T.H. hammer Lubricator
  • Preequiped for jetgrouting
  • Preequiped for drilling parameter recorder

Equipped with the Eurodrill RH 10 X drifter ( rotary head + percussion unit ).

2 gears motor with a max torque of 8.7 kNm and max rotation speed of 110 RPM.

MC 900P

Specifications:

The MC 900 P was conceived as a mid-size hydraulic drilling rig for geotechnical works. This rig incorporates a particularly flexible design and accommodates many different accessories, which has allowed for an extremely diversified technical evolution of the MC 900 P over the years, including fields other than geotechnical engineering.

Currently the MC 900 P is one of the most versatile models of the Comacchio line covering a large spectrum of activities related to geotechnical investigation, environmental studies and monitoring.

These include soil investigations carried out with destructive and non-destructive coring techniques, sonic technology, but also ground engineering works with the use of both rotary and/or rotary-percussive drilling.

Due to the high mast pull force and rotary head torque output, the MC 900 P is also perfectly suitable for water well drilling and the installation of geothermal borehole heat exchangers carried out with single string drilling (both with mud circulation and a down-the-hole hammer).

Drilling rig:

  • Year of manufacture : 2007
  • Working hours : 4200 h
  • Engine : Deutz Tier3 126 kW
  • feed stroke 4.000 mm (double head) – Total length 7.950  mm
  • Pull down max : 10t
  • Pull up max : 20t

Options:

  • Double head kit RH 3200 & CT 37 A with off-hole slidramatic

Upper head CT 37 A motors type OMV 500, lower head EURODRILL RH 3200 motors type 31

Air-water swivel CTA30 – connection 2” (on upper head)

  • Preventer for double head kit RH 3200 & CT 37 A
  • Rubber shoe for steel tracks (remote controlled) , width 400 mm
  • 2 Hydraulic rod holders + 1 rod breaker, clamping range: 45 – 300 mm
  • Rod guiding device, inserts diam. 183 mm + 197 mm
  • 1000 Kg  hydraulic winch
  • Water / foam pump UDOR GC 30 + washing kit
  • Screw pump NG 800 L/P5, 800 lt/min
  • Lubrication pump with timer for D.T.H. + Electro-hydraulic air gate valve (open/close of main line)
  • Electro-hydraulic air gate valve (discharge line)
  • Night light
  • Lifting device for rods and casing with jib boom + winch (Remote controlled)

Hydraulic crane AMCO VEBA V.807 TF/2S (Remote controlled)

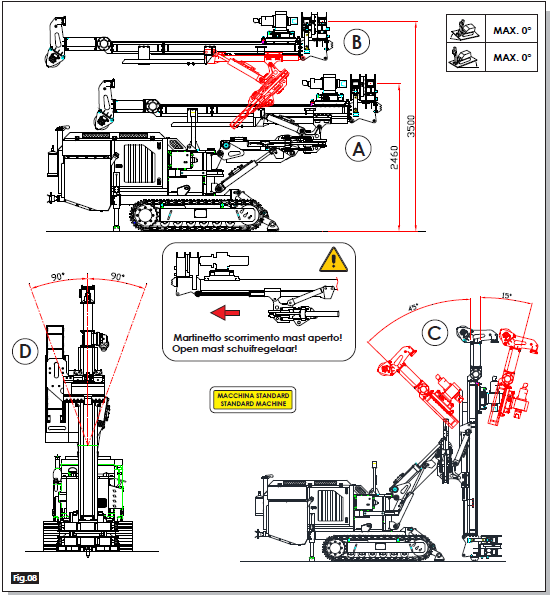

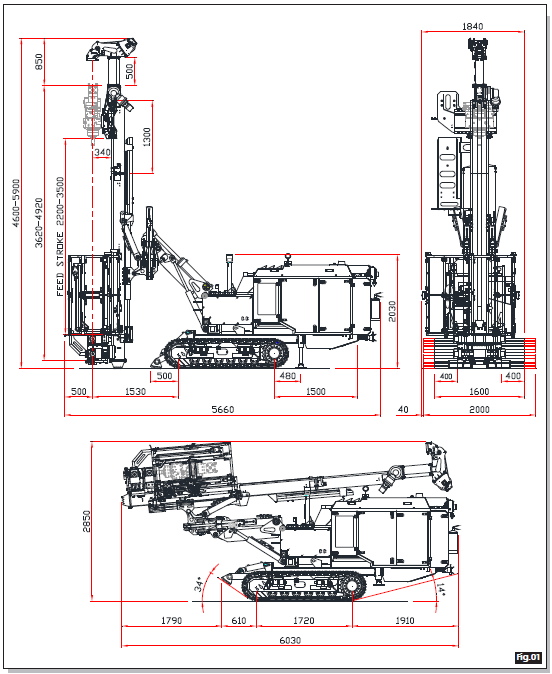

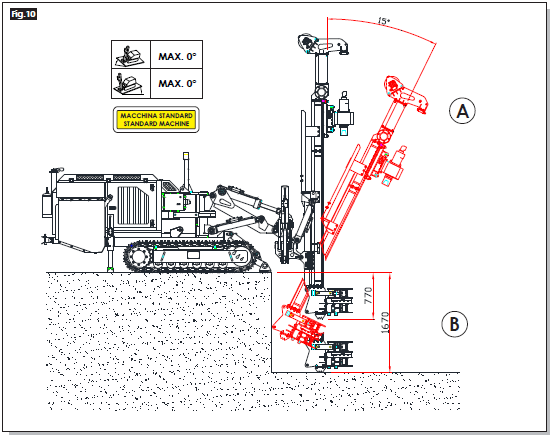

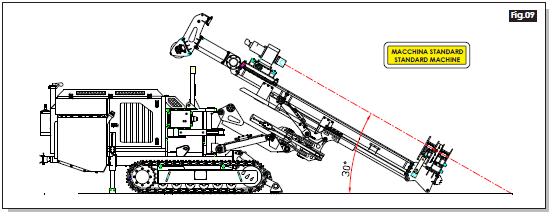

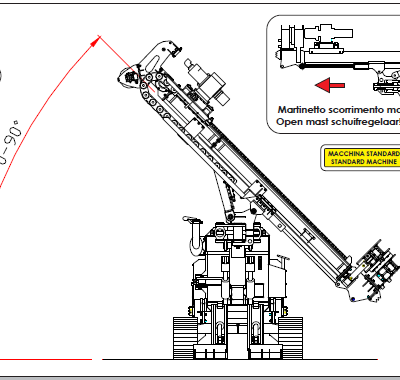

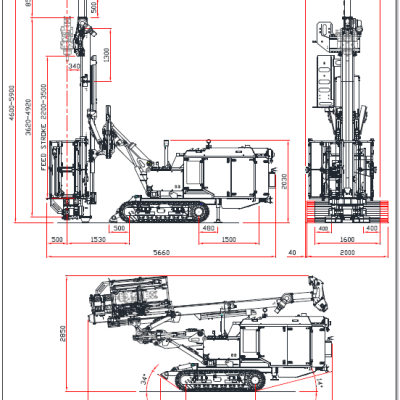

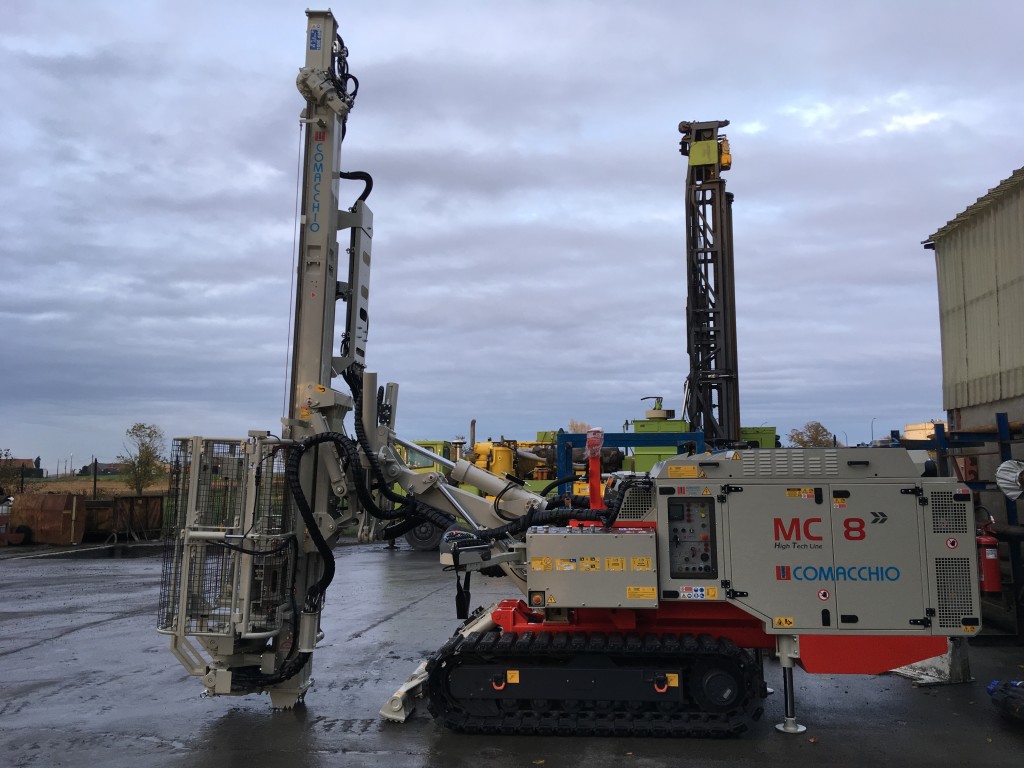

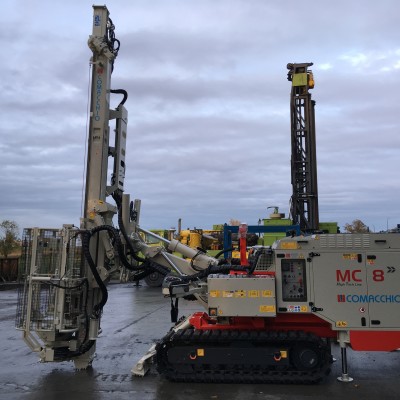

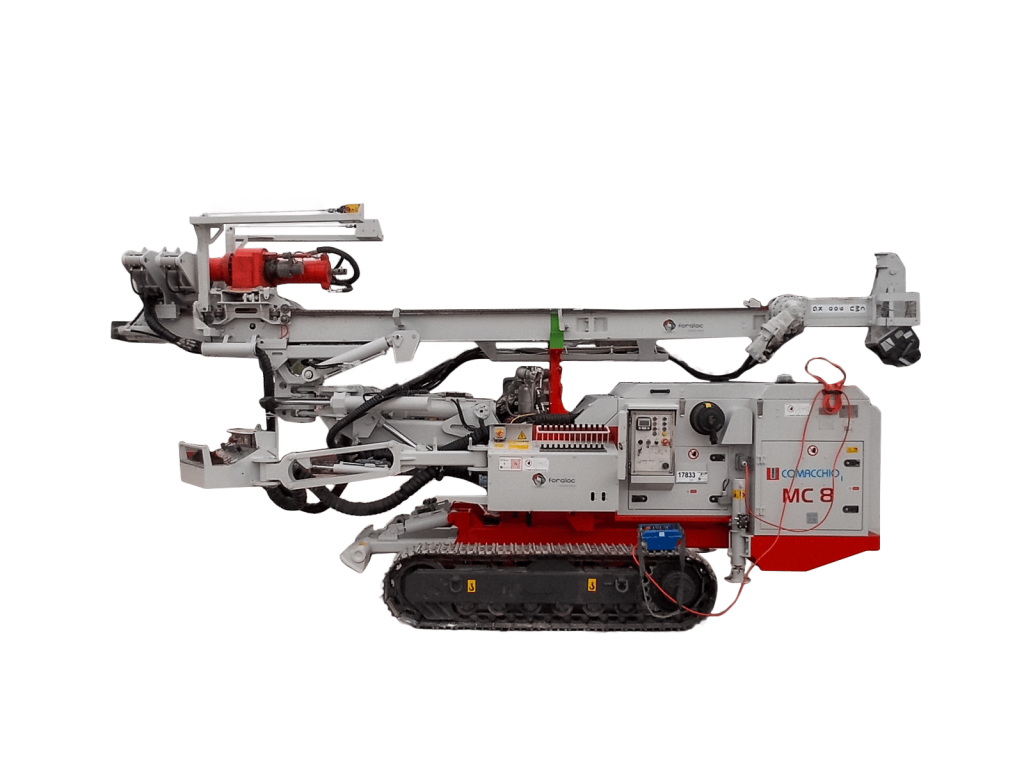

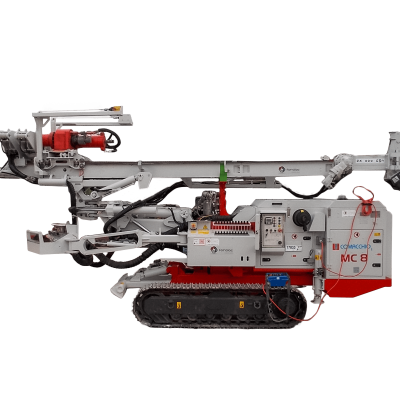

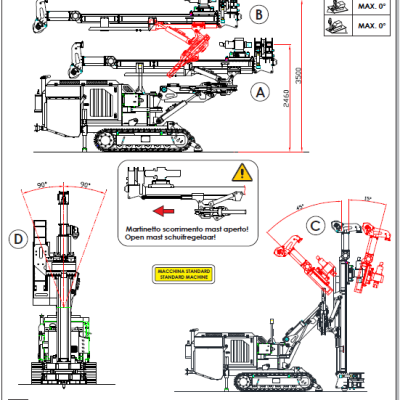

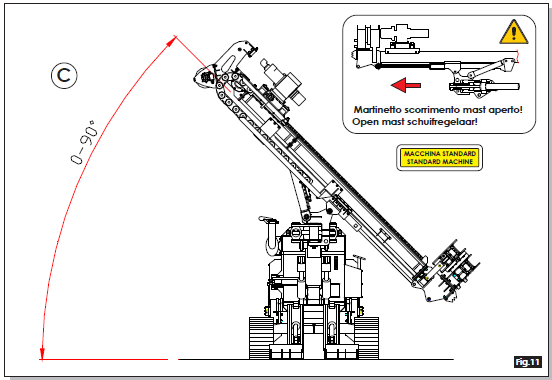

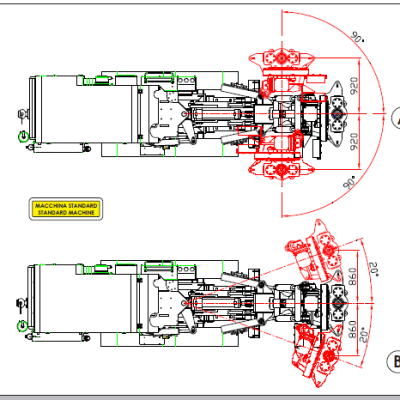

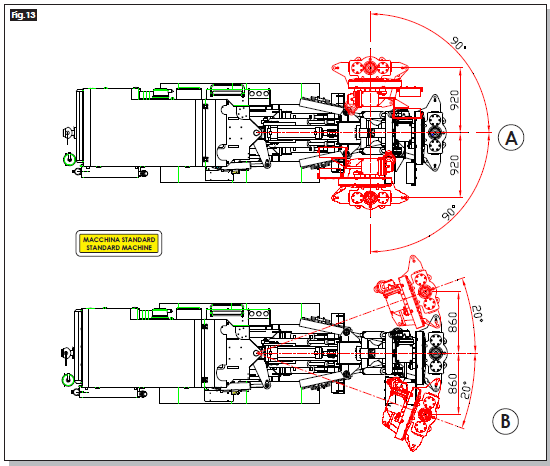

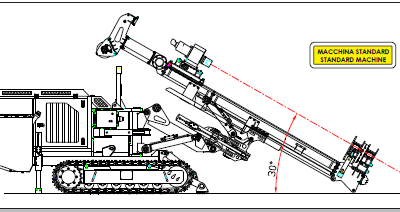

MC 8

Année : 2018

Prix : Sur demande

Description :

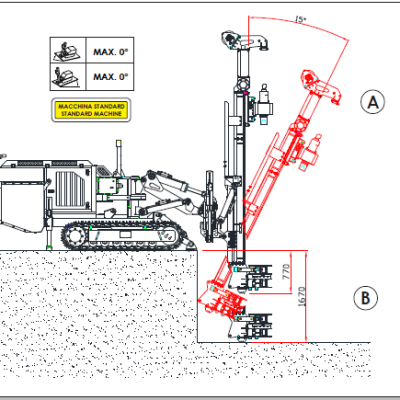

The MC 8 is an extremely versatile and powerful small/medium size hydraulic drilling rig, designed for civil engineering works such as micropiles, anchors, jet grouting and consolidations in general. The patented mast articulation abilities, compact size and large variety of movements and inclinations make the MC 8 suitable to be used even in very small spaces.

Options :

  • Year of manufacture : 2018
  • Weight : 8 900 kg
  • Max pull up 5000 daN , max pull down 5000 daN
  • Radio control for drilling + tracks
  • Motor Deutz 100 kW
  • Winch 1000 kg
  • Head slide off the way
  • High pressure cleaner + pump
  • Rubber shoe for steel track
  • LED lamps
  • Preequiped for jetgrouting
  • Preequiped for drilling parameter recorder

Equipped with the Eurodrill RH 10 X drifter ( rotary head + percussion ).

2 gears motor with a max torque of 8.7 kNm and max rotation speed of 110 RPM.

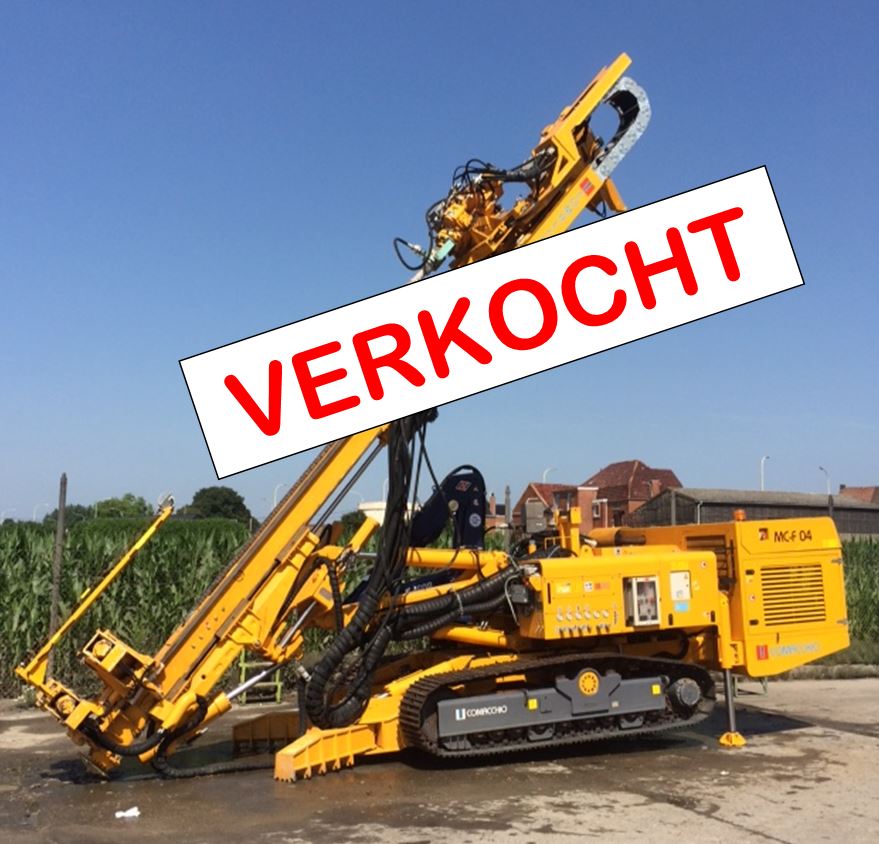

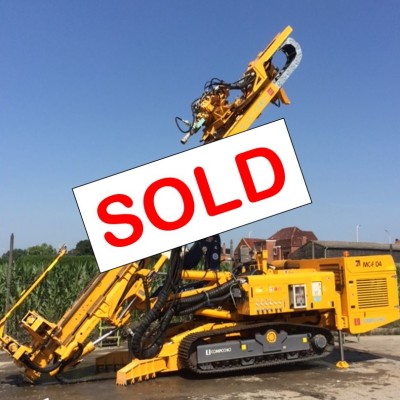

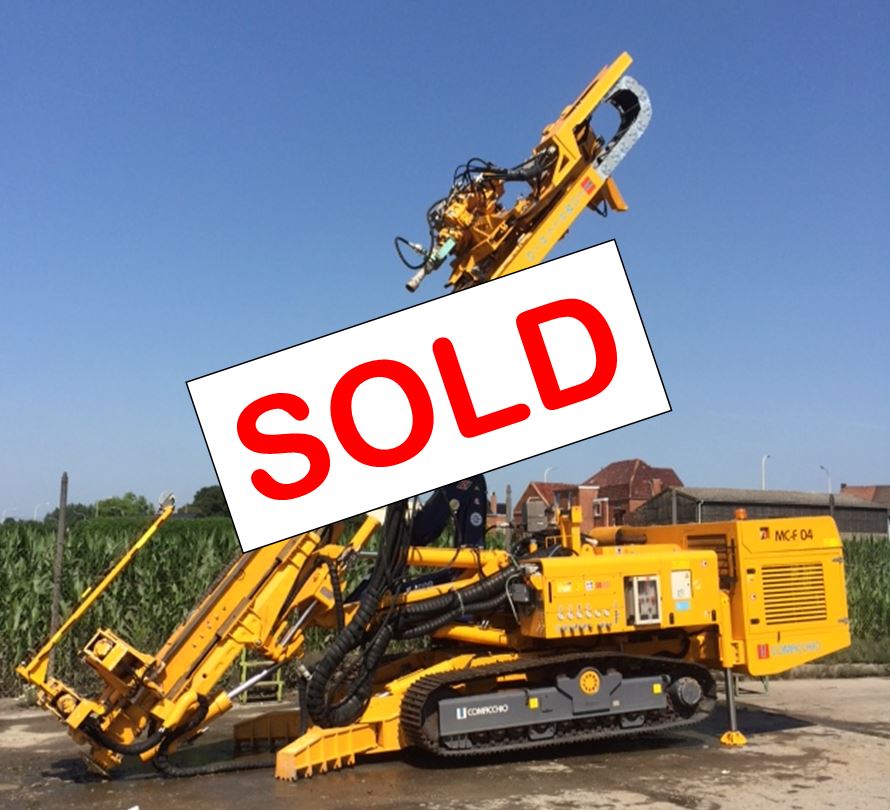

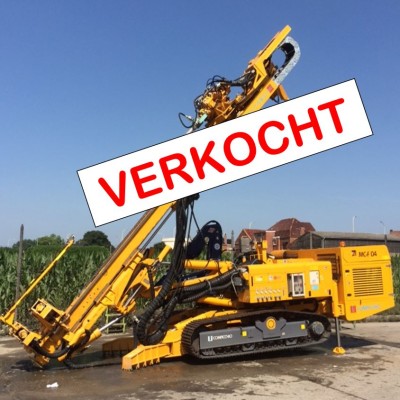

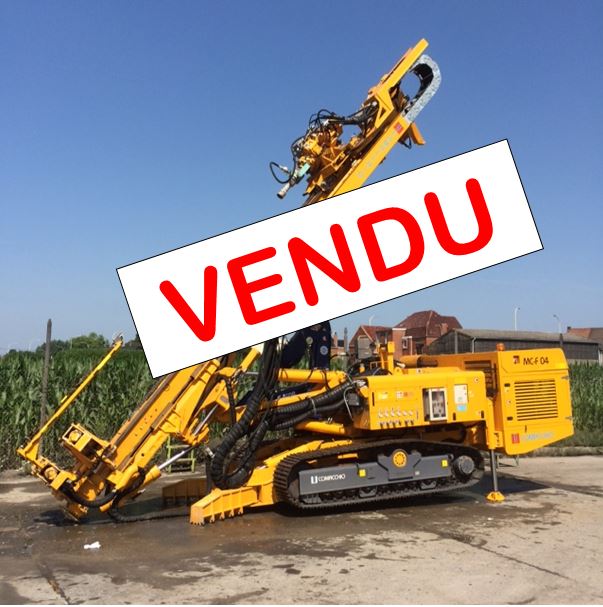

MC F04

VENDUE
