Les pompes Techniwell offrent une multitudes de possibilités, pour davantage d’informations sur la pompe qui vous intéresse, cliquez sur son nom sous la photo.

TWG 11 + TWM 5

The TWG 11 + TWM 5 is a compact solution to realise Mini-Jet pile (240 bar cement injection).

This system consist of a of Grout Pumps ( TWG 11) and Mixing Units ( TWM5 ) mounted on 2 different skids.

Both units are fully electric.

Technical specifications:

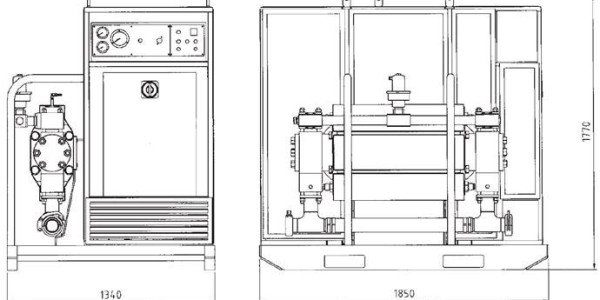

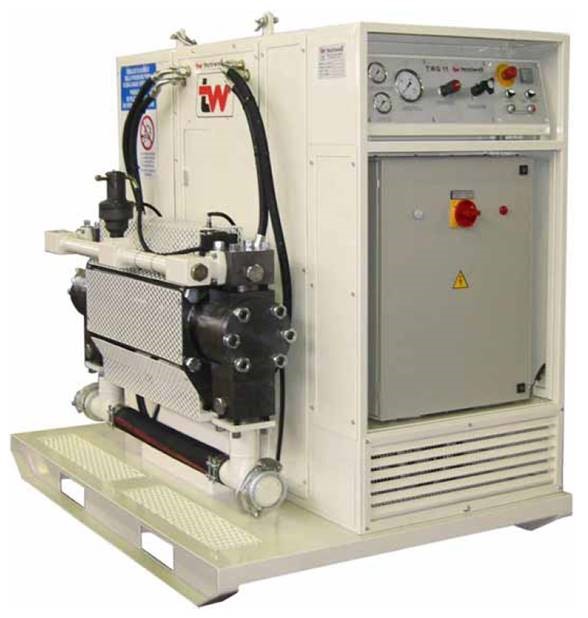

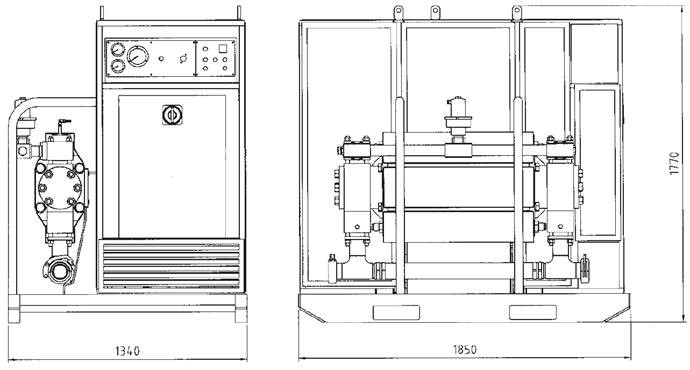

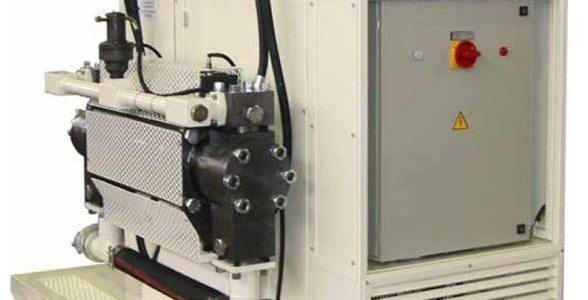

TWG 11 GROUT PUMP

Double effect piston

  • Max. flow rate : 70 lt/min
  • Max. pressure : 240 bar
  • Weight 2 000 kg

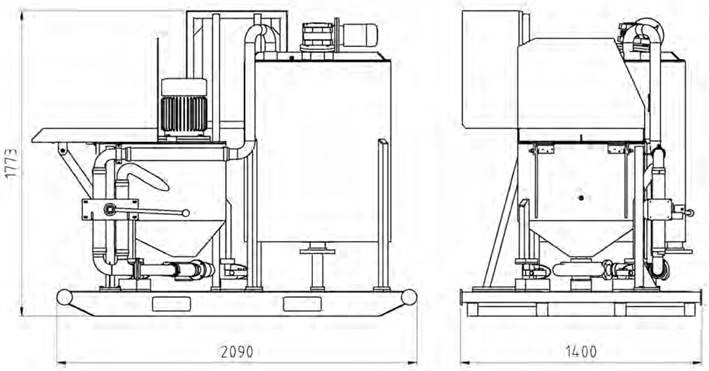

TWM 5 GROUT MIXER

  • Max. hourly mix. capacity : 5 m3
  • Mixer Tank capacity : 200 lit
  • Agitator Tank capacity : 500 lit
  • Weight 1 000 kg

Applications:

  • Foundations (Mini-jet, micro pile, anchor)
  • Micro tunnelling (delivery and injection of slurries, cavity filling)

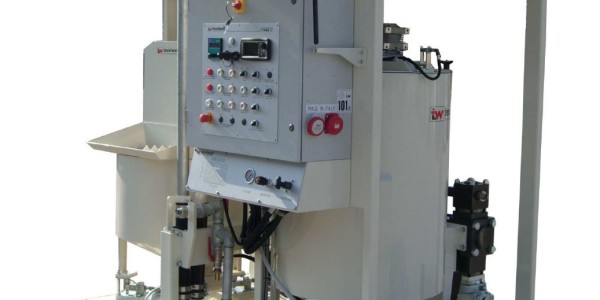

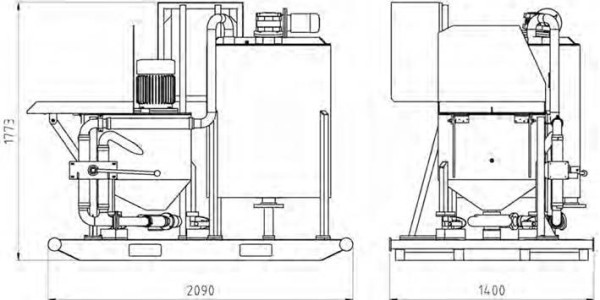

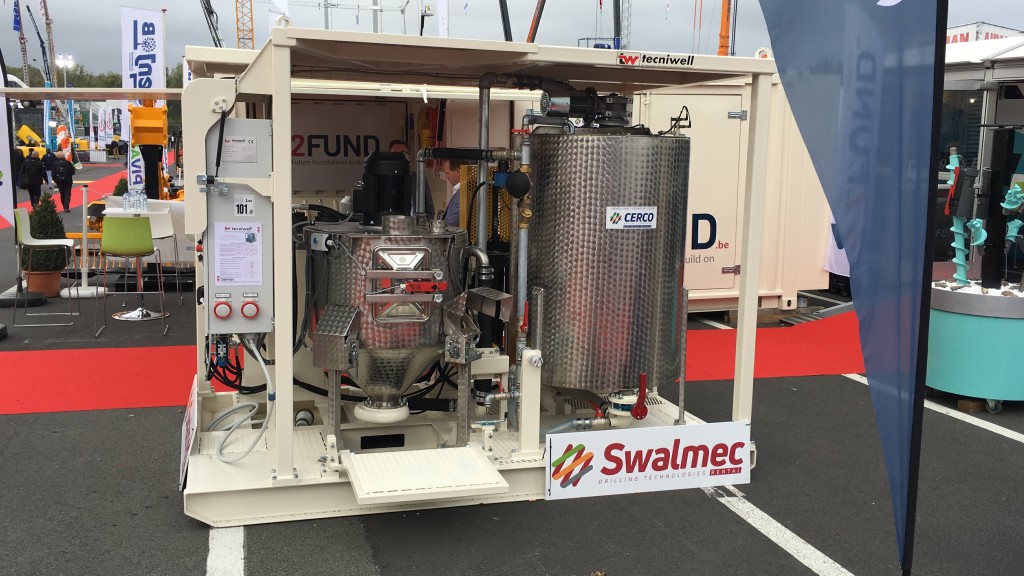

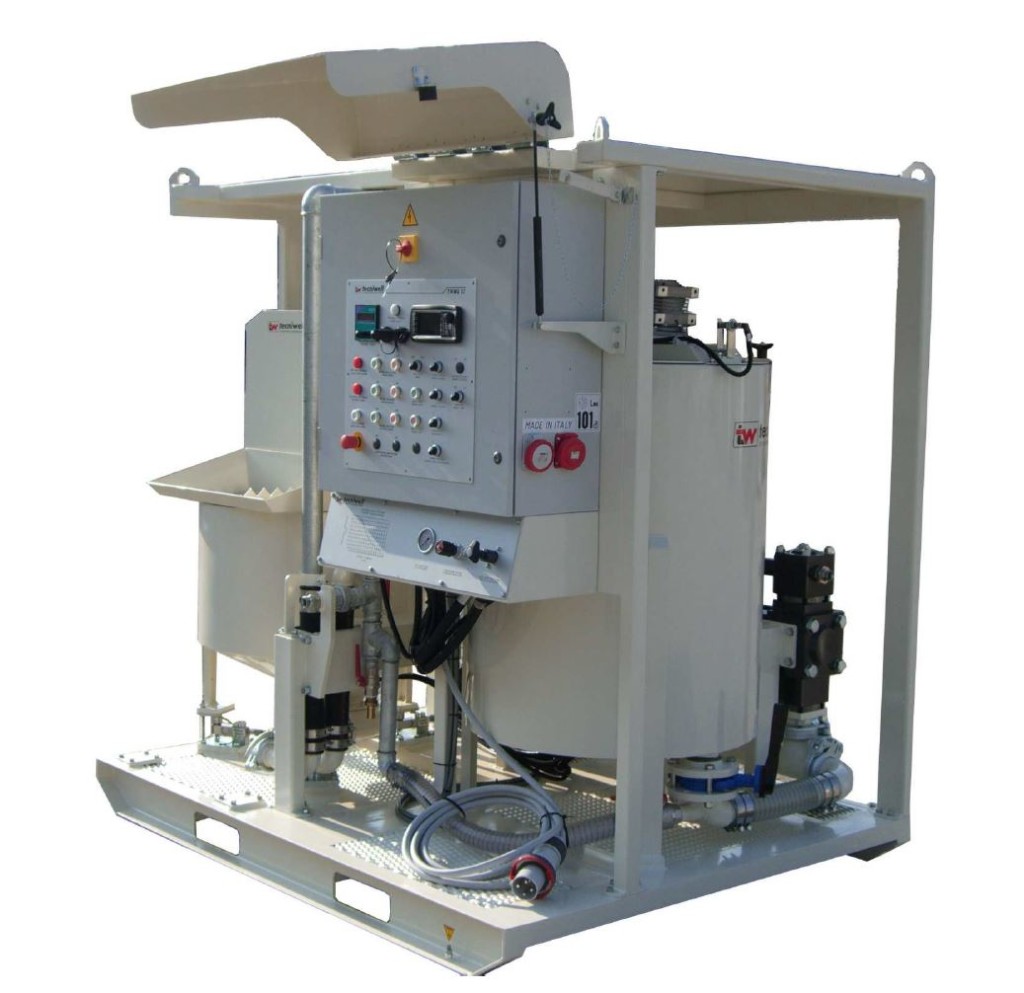

Injection/mixing plant TWMG 57

The injection/mixing plant TWMG 57 is a compact plant used for mixing and injecting grout on site.

It is particularly suitable for mixing and pumping cement slurry, bentonite or other solid-containing slurries.

This system consist of a combination of Mixing Units ( TWM5 ) and Grout Pumps ( TWG 7) mounted on the same skid protected by an external frame and cover.

This injection plant is fully electric and equipped with :

  • High pressure cleaner
  • Radio control used to activate the pump and regulate the injection flow remotely
  • Flowmeter and pressure meter recording injection parameter on USB stick

Technical specifications:

TWM 5 GROUT MIXER

  • Max. hourly mix. capacity : 5 m3
  • Mixer Tank capacity : 200 lit
  • Agitator Tank capacity : 500 lit

TWG 7 GROUT PUMP

Double effect piston

  • Max. flow rate : 150 lt/min
  • Max. pressure : 90 bar

Overall dimensions and weight:

  • Width : 1 555 mm
  • Length : 2 070 mm
  • Height : 1 862 mm
  • Weight 1 800 kg

Applications:

  • Foundations (micro pile, anchor)
  • Micro tunnelling (delivery and injection of slurries, cavity filling)
  • Environmental (injection of remediation liquid)
